Reference 12024-2

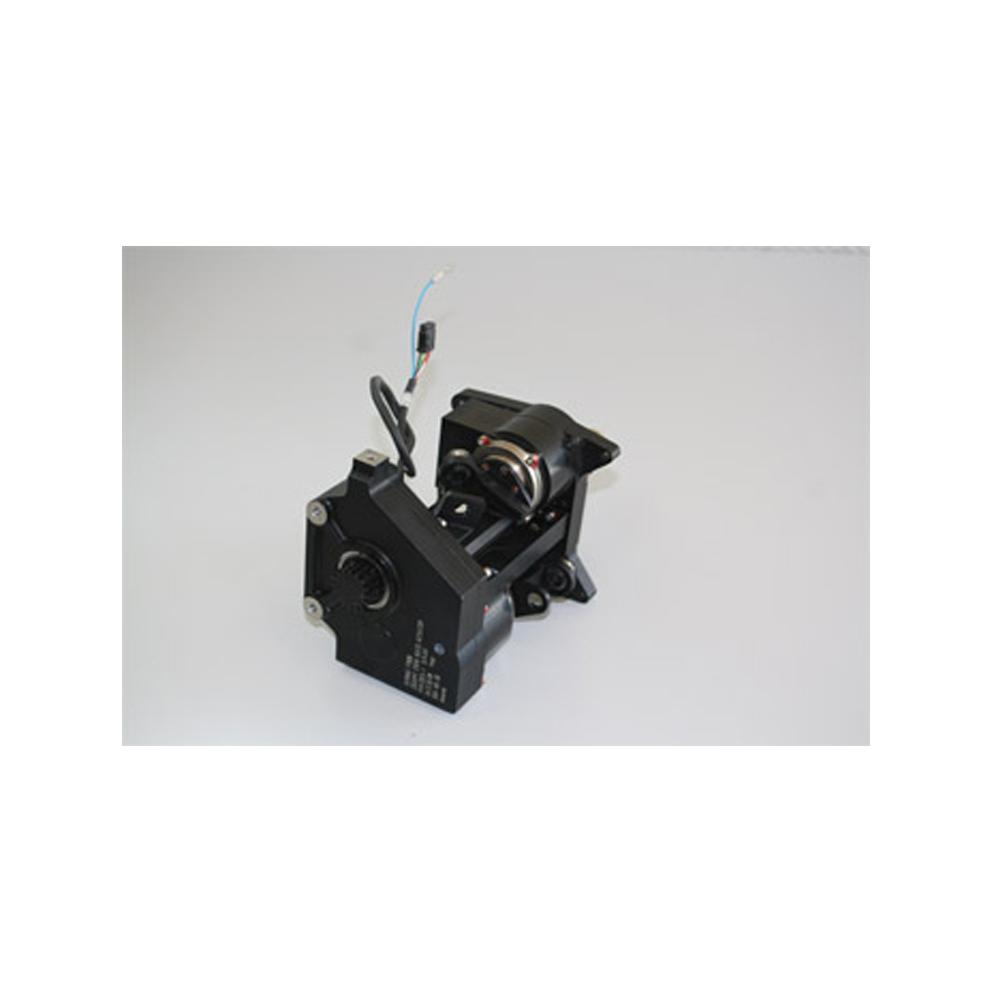

Linear and rotary actuator for pilot and copilot seat including: torque limiter, manual override, mechanical brake, thermal protection, electrical damper when load is aiding.
Application: military aircraft.

Technical specifications

U = 3 x 115 VAC, 400 Hz
Weight: 2.25 kg
Dimensions: 255 x 110 x 110
Ambient temperature: -40 to +71°C

Horizontal motion:
Current: 0.6 AC
Speed: 40 rpm
Load: 3,7 Nm

Vertical motion:
Current: 0.35 AC
Speed: 23 mm/s
Load: 120 daN
