Reference 12022-4

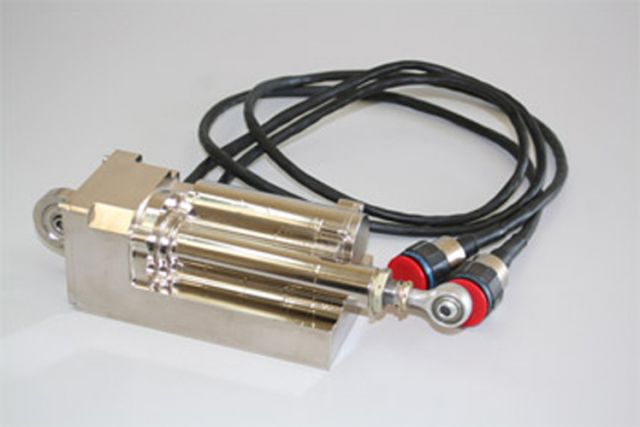

Linear actuator controlled in position including brushless motor, integrated electronics, RVDT, tacho generator, mechanical brake, torque limiter, current limitation, controlled in position with built in RVDT and electronics.
Application: long range aircraft new generation.

Technical specifications

U = 28Vdc
Current: 2.8 A
Speed: 8.7 mm/s
Load: 621 N
Stroke: 85 mm
Weight: 1.65 kg
Dimensions: 316 x 79 x 69
Ambient temperature: -40 to +71°C
Sealed unit
