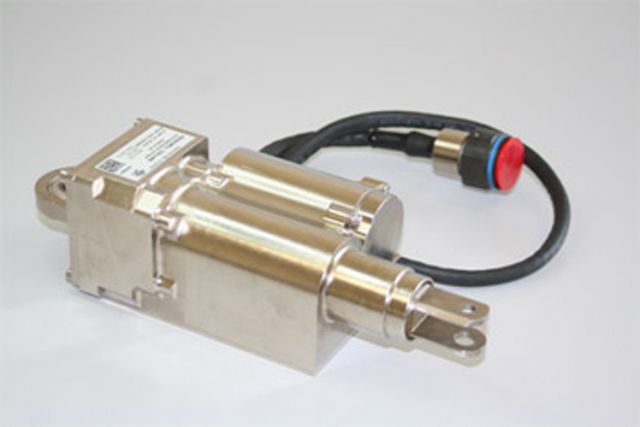

Linear actuator controlled in position including brushless motor, integrated electronics, RVDT, torque limiter, pull-back spring, current limitation, speed limitation, controlled in position through built in RVDT and electronics. Application: long range aircraft new generation.
Technical specifications
U = 28Vdc
Current: 1.5 A
Speed: 5.1 mm/s
Load: 578 N
Stroke: 70 mm Weight: 1.55 kg
Dimensions: 188 x 67 x 89
Ambient temperature: -40 to +71°C
Sealed unit
