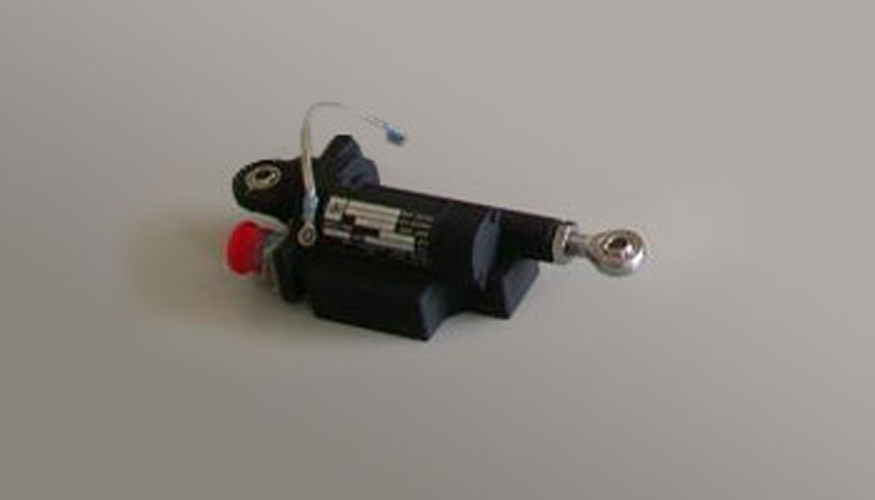

Linear Cylinder Actuator with Brushless Motor

Reference 12006

Brushless motor driven by built-in electronics. Stop by electrodynamic braking on end of stroke switches.

U = 28 Vdc
Current: 2.5 A
Speed: 25 mm/s

Load: 200 N
Stroke: 50 mm
Irreversibility: 4000 N
Weight: 0.625 kg
Dimensions: 176x 48 x 69
Ambient temperature: -40 to +105°C
Sealed unit
