Reference EE0033 / EE0417

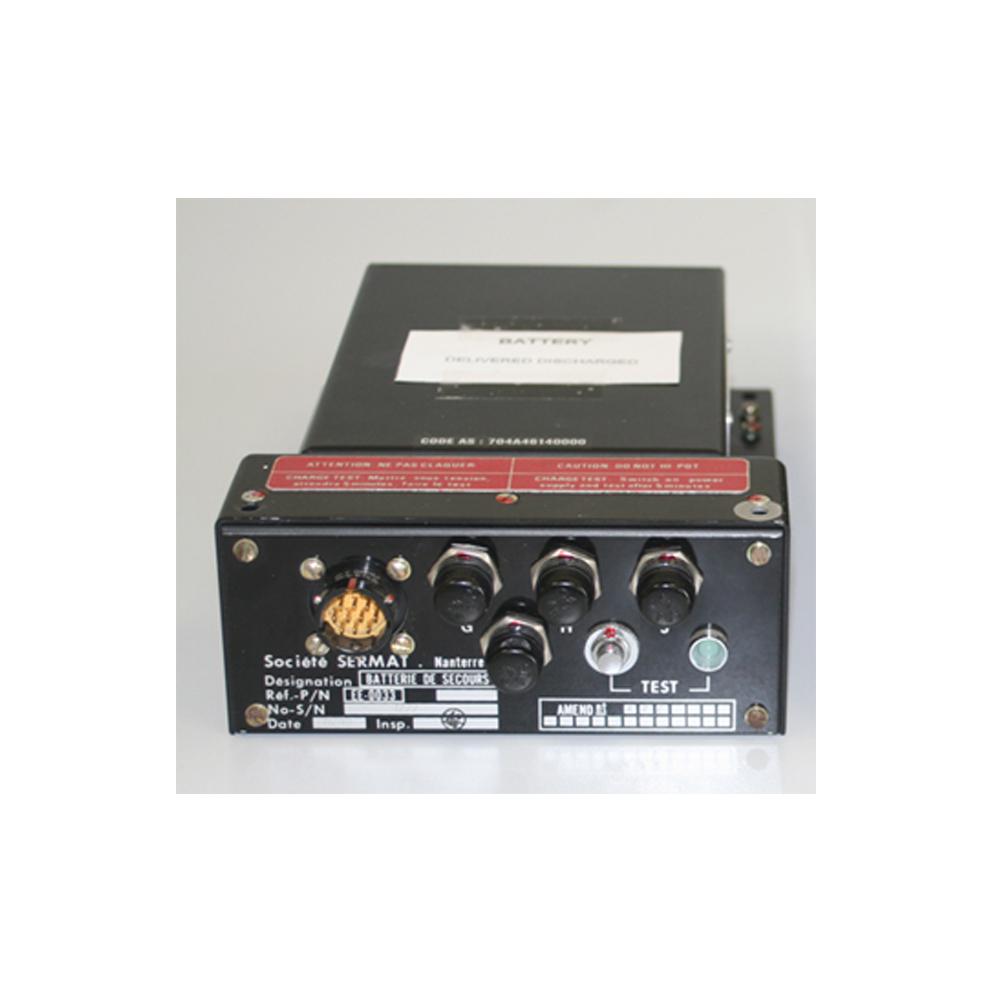

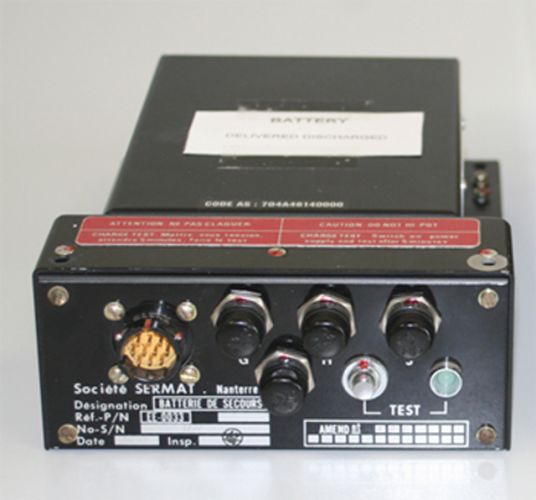

Stand by batteries with integrated charger for helicopter.
Function: load cell test.
Capability: 1.4 ampere.hour
The batteries pack is charged when 28VDC bus is present (Temperature, Voltage and current controlled)
When the 28VDC bus disappears, the stand by battery replaces it and supplies emergency equipements of the helicopter.

Technical specifications

U = 28 Vdc
Weight: 2.5 kg
Dimensions: 206 x 140 x 60
Temperature range: -20° C to +50°C
