linear actuator brushless

linear actuator brushless

Linear actuator controlled in position for Boeing B787 including brushless motor, integrated electronics, RVDT, torque limiter electrical, current limitation, speed limitation when load is aiding.

NetPilote création de site internet comité d'entreprise experts en sites dynamiques.
mercredi 4 octobre 2023

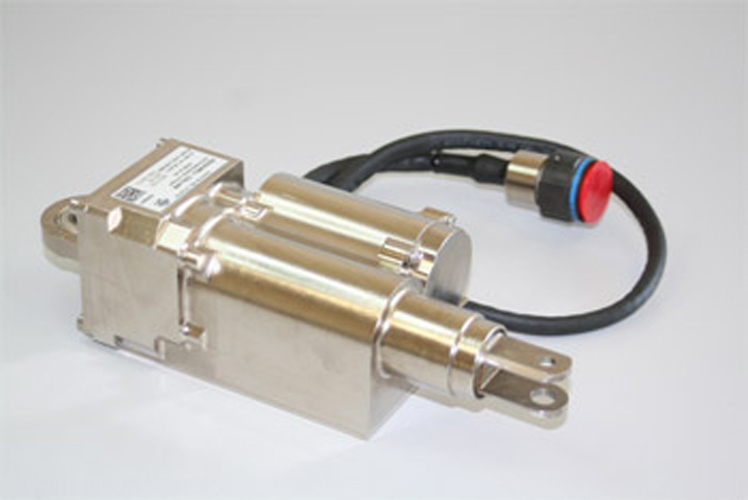

Linear actuator controlled in position
Reference 12023-4
SERMAT AERO
Features
U = 28Vdc
Current: 1.5 A
Speed: 5.1 mm/s
Load: 578 N
Stroke: 70 mm
Weight: 1.55 kg
Dimensions: 188 x 67 x 89
Ambient temperature: -40 to +71°C
Sealed unit
Description
Linear actuator controlled in position including brushless motor, integrated electronics, RVDT, torque limiter, pull-back spring, current limitation, speed limitation, controlled in position through built in RVDT and electronics.
Application: long range aircraft new generation.
