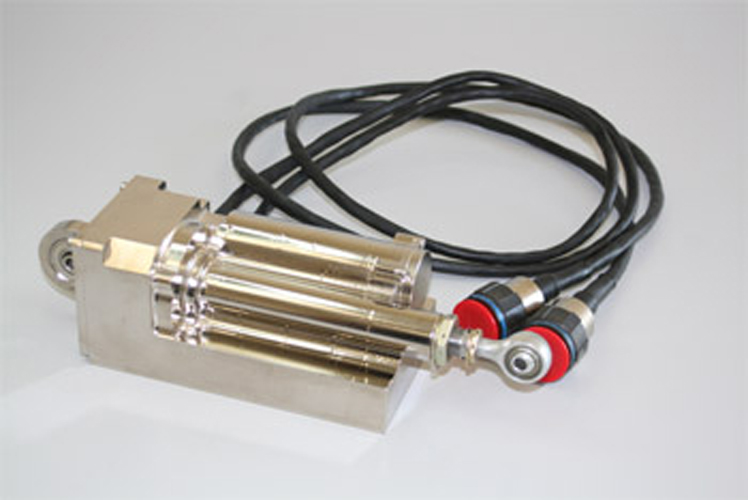

Linear actuator controlled in position
Reference 12022-4
SERMAT AERO
Features

U = 28Vdc
Current: 2.8 A
Speed: 8.7 mm/s
Load: 621 N
Stroke: 85 mm
Weight: 1.65 kg
Dimensions: 316 x 79 x 69
Ambient temperature: -40 to +71°C
Sealed unit

Description
Linear actuator controlled in position including brushless motor, integrated electronics, RVDT, tacho generator, mechanical brake, torque limiter, current limitation, controlled in position with built in RVDT and electronics.
Application: long range aircraft new generation.
