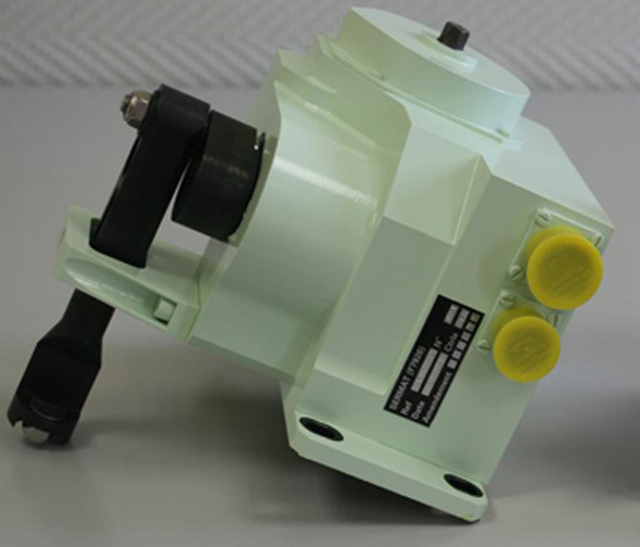

Rotatry door locking actuator

Friday, May 9, 2025
Rotary actuator with current limitation and manual drive command.
Reference 13022

Technical specifications

U = 28 Vdc
Current: 8.5 amps
Speed: 25°/s
Load: 4800 N
Irreversibility: 13000 N
Weight: 5 kg
Dimensions: 189 x 184 x 150
Ambient temperature: -40 to +71°C
Sealed unit
