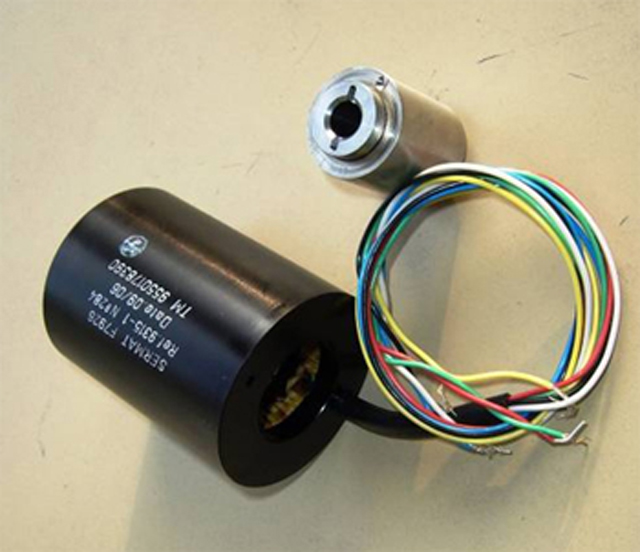

PMG double alternator for FADEC

Monday, May 19, 2025
PMG
Dual Alternator
8400 to 24000 rpm
Reference 9315-1

Technical specifications

8400 to 24000 rpm
U1 = 28 V to 63 V
U2 = 12 V to 51 V
U1 = 28 V @ 3.5 A / 14000 rpm
U2 = 12 V @ 2.5 A / 14000 rpm
Dia = 50 mm X L = 64 mm
Weight = 0.43 kg
