Home > Products > Torque motor

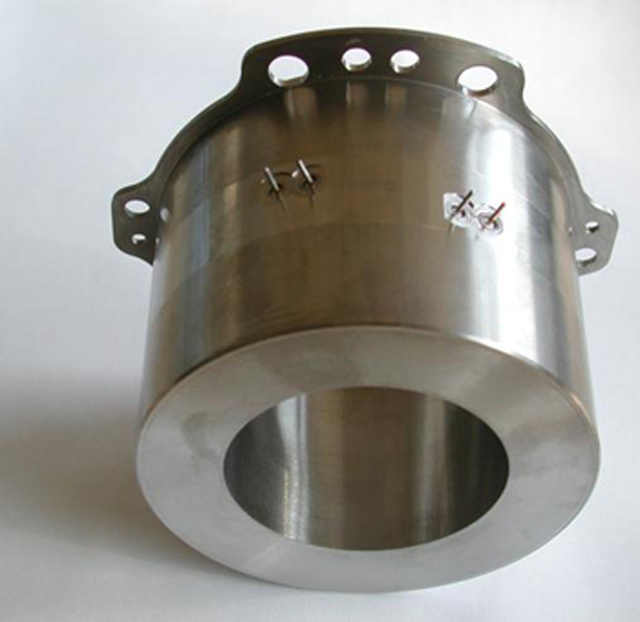

Dual limited angle brushless DC torque motor
Reference 9787
Features
Weight = 1.32 kg
Dia. Ext. = 87 mm
Dia. Int. = 53 mm
Airgap = 0.65 mm
L = 65 mm
Kt = 0.877 Nm/A (each coil)
Operating angle = +/- 10°
-40°C < Temp < +120°C
Description
Torque motor. Dual limited angle brushless DC torque motor.
Hermetically sealed by laser welding
Titanium housing
Helicopter flight control system
